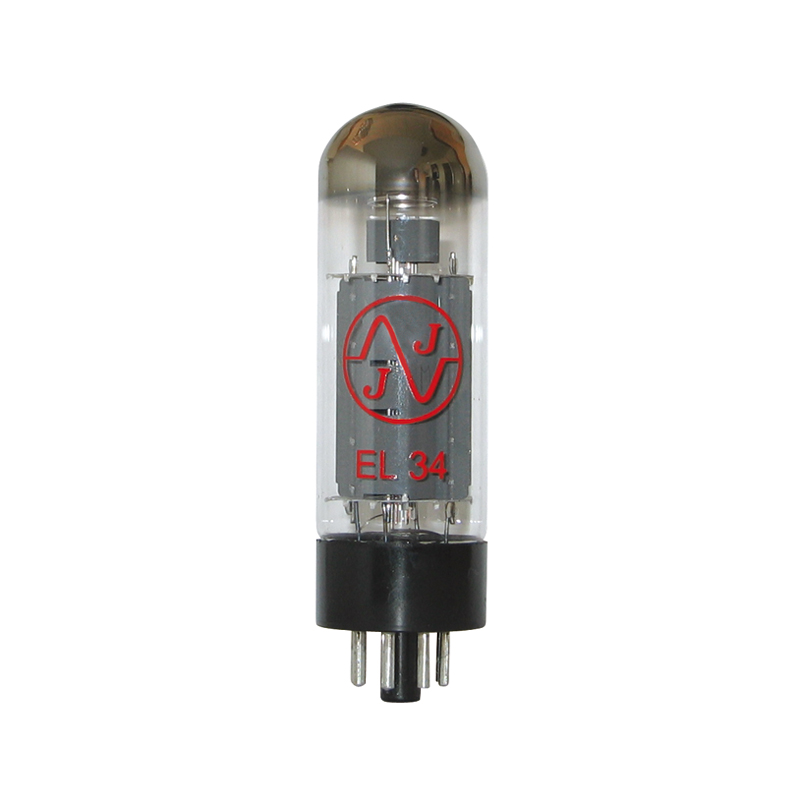

EL34 / 6CA7-JJ

AF OUTPUT PENTODE. Base (octal / plastic): Uf = 6.3V, If = ca.1.5A. Characteristic: Ua = 250V, Ug3 = 0V, Ug2 = 265V, Ug1 = -10V, -13.5V, Ia = 100mA, Ig2 = 14.9mA, S = 11mA / V, Ri = 15kOhm, μg2 / g1 = 11, Iaz (Ug1 = -30V) <7mA. Limits: Ua0 = 2000V, Ua = 800V, Wa (max) = 25W, Ug20 = 800V, Ug2 = 450V, Wg2 (max) = 8W, Ik = 150mA, Uk / f = 100V, Rk / f = 20kOhm. Capacitance: cg1 = 15.5pF, Ca = 10pF, Ca / g1 = 1.3pF. Dimensions (H / H with pins x diam.): 98/112 x 33.3 mm
