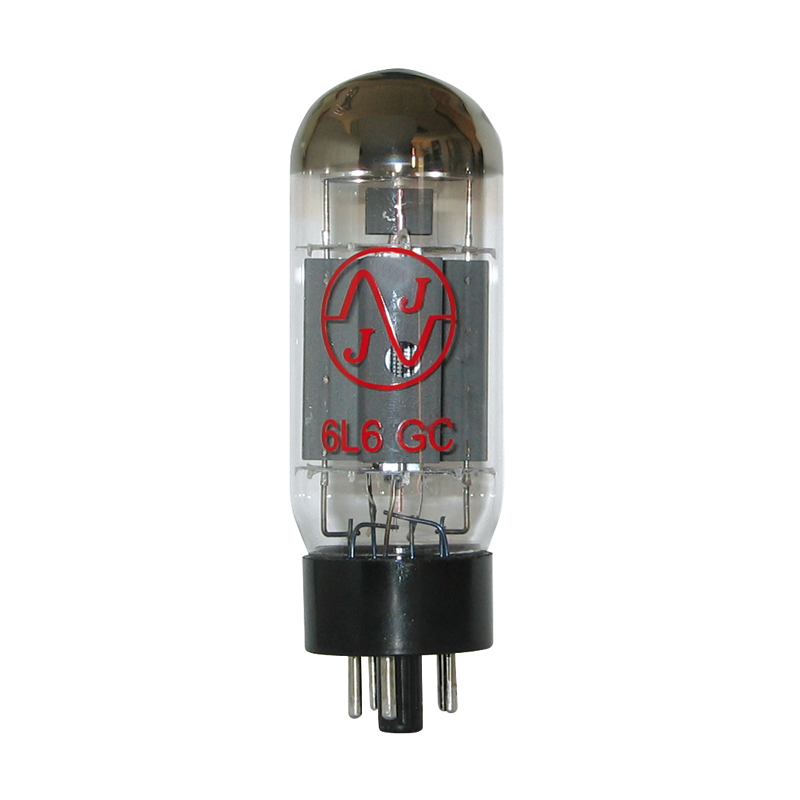

6L6GC / 5881-JJ

AF BEAM PENTODE. Socket (octal / plastic): Uf = 6.3 V, If = ca 0.9 A. Characteristics: Class A1 Singl tube: Ua = 250V, Ug2 = 250V, Ug1 = -14V, Ia = 72mA, Ig2 = 5mA, Ra = 22.5 kOhm, N = 6.5W. Push pull: Ua = 270V, Ug2 = 270V, Ug1 = -17.5V, Ia = 134mA, Ig2 = 11mA, Ra-a = 5kOhm, N = 17,5W. Limit values ​​(triode): Ua = 450V, Ug2 = 450V, Wa = 30W. Limits (Pentode): Ua = 500V, Ug2 = 450V, Wa = 30W. Ignition resistance: 0.5mOhm. Capacitance: Cg = 12.5pF, Ca = 10pF, Ca / g1 = 1.5pF. Dimensions (H / H with pins x diam.): 100/115 x 38 mm
