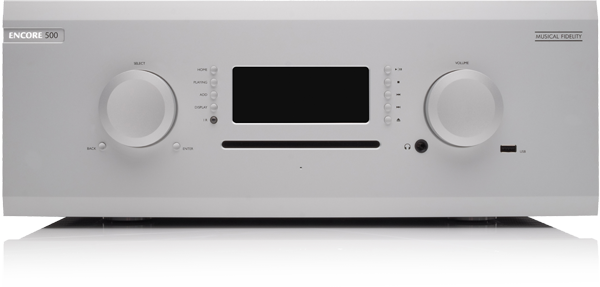

MUSICAL FIDELITY M8 ENCORE 500

M8 Encore 500 - Specifications

Output performance

Power 500 Watts per channel into 8 Ohms

Voltage 63Volts RMS, 20Hz to 20 kHz; onset of clipping

178 Volts peak to peak

Current 90 Amps peak to peak

Damping factor 180

Output devices 4 pairs per channel

Line input performance

Input signal voltage 0-7 Vrms maximum

THD+N < 0.007 % typical, 20Hz to 20 kHz

Signal / noise ratio > 107dB ‘A’-weighted

Input impedance 40 kΩ

Frequency response + 0, –0.1dB, 10Hz to 20 kHz

Line level inputs

3 pairs line level RCA connectors

Digital inputs

2 Optical S/PDIF (up to 24bit/192kHz)

2 Coaxial S/PDIF (up to 24bit/192kHz)

USB sockets

1 Front panel Type A USB2 socket (1.5A USB-BC 1.2 compliant)

2 Back panel Type A USB2 socket (500mA)

1 Back panel Type A USB3 Socket (USB-BC1.2)

1 Back panel Type B socket (Factory use only)

All of the ENCOREs USBs are activated to copy music files from USB devices, and the sockets are electrically active so you can charge your phone/tablet/portable USB device.



Line level outputs

1 pair line level RCA connectors, fixed level outputs gain = 0dB (x1) 7 Vrms output maximum

1 pair line level RCA connectors, PREAMP outputs set by volume gain = -∞ to +13dB maximum 7 Vrms output maximum

Digital Outputs

1 Optical S/PDIF (up to 24bit/192kHz)

1 Coaxial S/PDIF (up to 24bit/192kHz)

Speaker outputs

2 pairs 4mm banana plug/binding posts (1 set each left and right)

Headphone outputs

0.25” (6.35mm) impedance 10Ω - ∞

Network connection

RJ45 8P8C 10/100/1000Base-T

Power requirement

Mains voltages 115/230VAC 50/60Hz (factory pre-set)

100VAC 50/60Hz (alternative)

Power Consumption

<0.5W in standby mode

58W idle

1.6k Watts maximum

Weight

Unit only, unboxed 38.5 kg (84 lbs)

In shipping carton (inc. accessories) 47 kg (103 lbs)

Dimensions

Wide 483 mm (19”)

High, including feet 185 mm (7 1/3 ”)

Deep (front to back) including terminals 510 mm (20”)

Standard accessories

IEC type mains lead 16-Amp type

Remote control

Batteries LR03 or AAA, manganese alkaline type 2 off

Ethernet cable

Quick start guide
