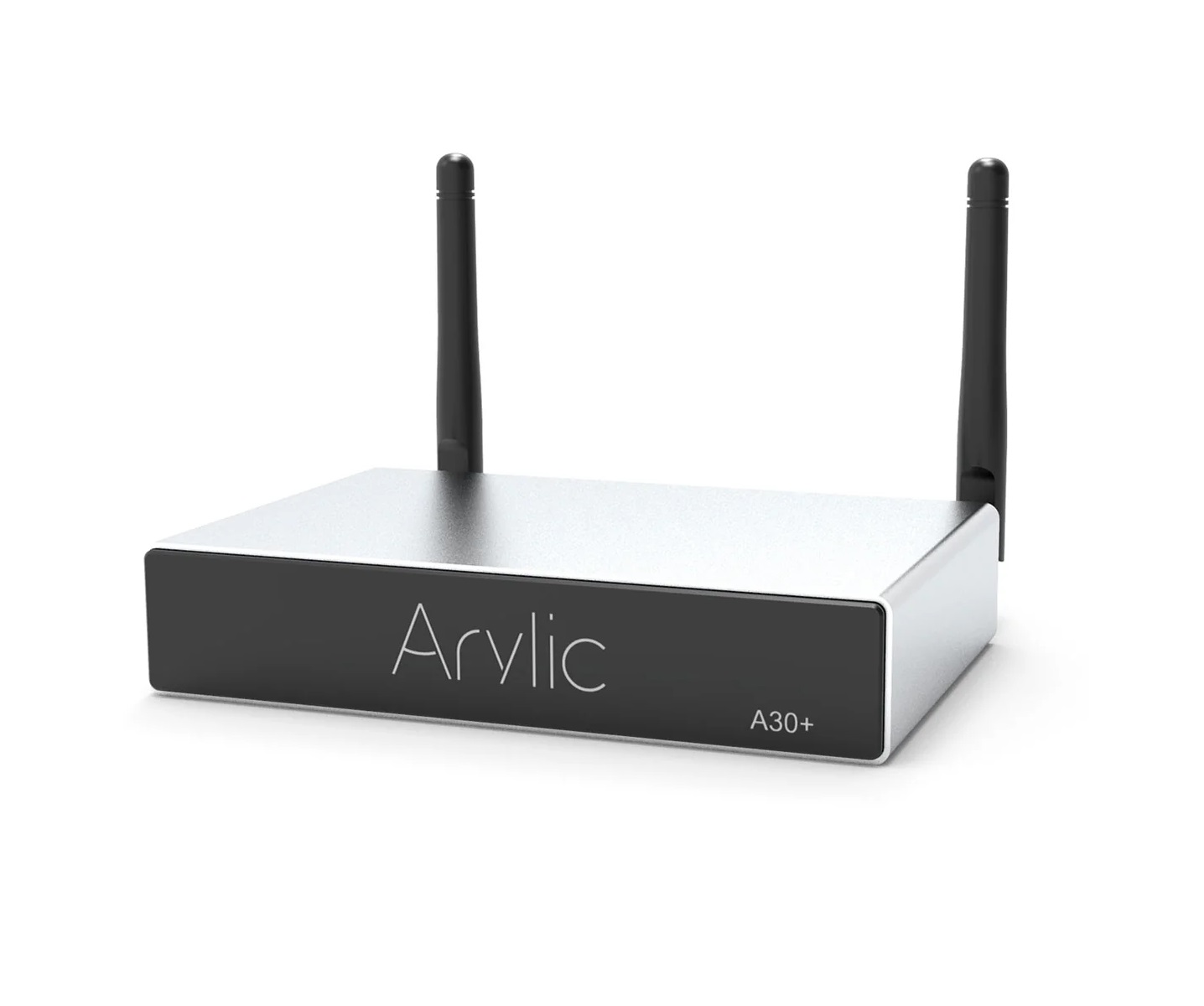

ARYLIC A30+

A30+ WiFi Audio Amplifier, User Manual, Remote, 18V 4A DC Power Adapter, External Antennas (Bluetooth & WiFi), 2-1 RCA Cable, Screw Driver, 4 Pin Phoenix Connector (for speakers).



Specification

Newest Firmware Version

4.6.415145.35



Connectivity

WiFi:

IEEE802.11 b/g/n 2.4G



Bluetooth:

5.0 SBC/AAC, 15M, BT Receiver



Wired Network:

Ethernet Single 10/100M RJ45



Power Input

12V-18V/DC in



Audio Input

Analog:

AUX (1Vrms)



Digital:

Micro USB Input



Audio Output

Analog:

Speaker Out



Amplifier Chip

TPA3116



Speaker Power

2 x 35W @ 4Ω load at 18V

2 x 18W @ 8Ω load at 18V



Speaker Impedance

4-8Ω



USB Host

For USB pen drive/stick, 1000 songs limited



Frequency Response

20Hz to 20kHz



THD + N

<0.03% @ 1kHz/1W/4Ω



Music Format

FLAC/MP3/AAC/AAC+/ALAC/APE/WAV

Audio Format

Decoding up to 192kHz/24bits

Output up to 44.1kHz/16bits CD quality

Protocols

AirPlay, DLNA, UPnP, Spotify Connect, Qplay

NAS

Support NAS with DLNA support

General

Dimensions:

131.8mm*85.5mm*27mm (5.18in*3.37in*1.06in)

Weight:

500g
