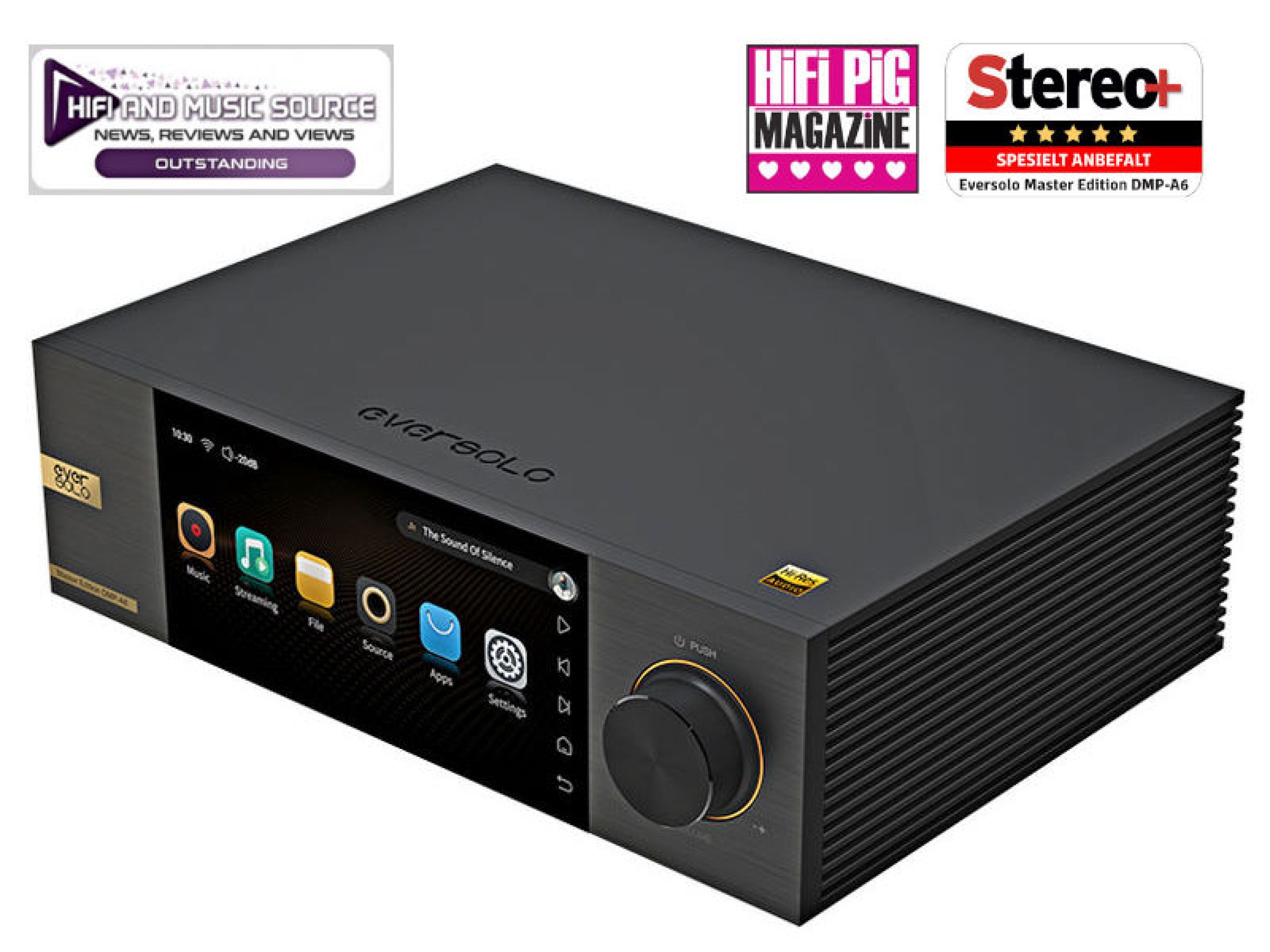

EVERSOLO DMP-A6 Master

Touch screen LCD 6"

CPU ARM Cortex-A55 (Quad-core)

Internal memory 4GB DDR + 32GB eMMC

Support SSD M.2 NVME 3.0 until 4TB (not included)

DAC Chip 2 x ES9038 Q2M

Audio decoding PCM : 32bit 768kHz

DSD : DSD512

MQA

USB Interface XU316 (3rd generation)

HDMI decoding chip 2x DOH chips

AOP Chips OPA1612

Connectivity

WiFi Dual-band 2.4G+5G

Ethernet RJ45 (10/100/1000Mbps)

Input USB port USB-C  3.0

Systeme compatibility : Windows (7, 10), Mac, Android, IOS

Audio compatibility :Stereo DSD512, PCM 768KHz 32Bit, MQA

Output audio HDMI Multi-channel : DSD64 Native

Raw Multi-channel : PCM 192KHz

Input Bluetooth 5.0 QCC5125 Chip

Supported Codecs : SBC, AAC, aptX, aptX LL, aptX HD, LDAC

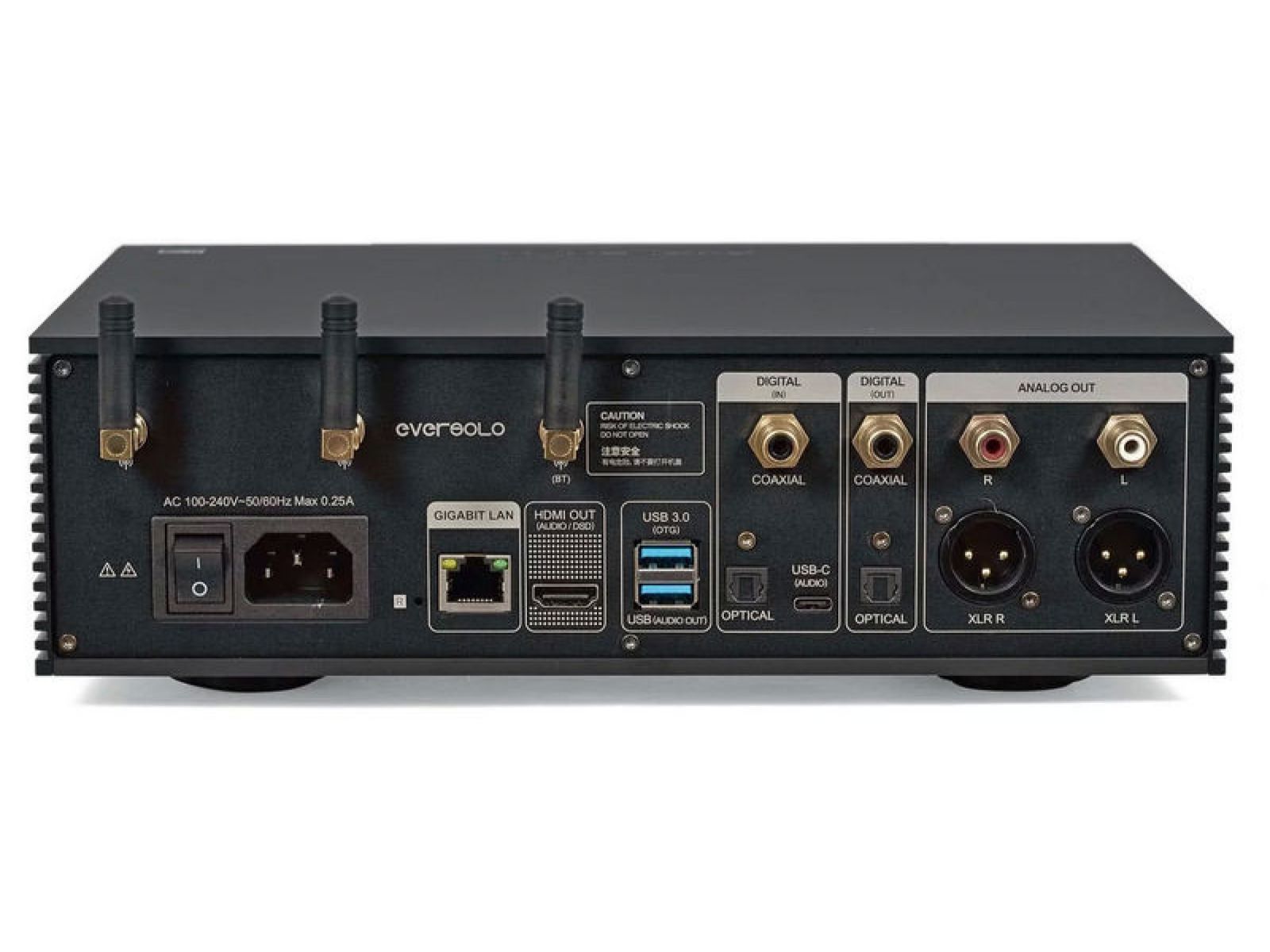

Digital audio inputs Bluetooth

1x USB-C

1x Coaxial

1x Optical Toslink

Digital audio outputs Bluetooth

1x Coaxial

1x Optical Toslink

1x HDMI

2x USB-A (USB3.0)

Analog audio outputs 1 x unbalanced stereo RCA

1 x balanced stereo XLR

Integrated music services Tidal, Qobuz, Highresaudio, Deezer, Paradise Radio,WebDAV, UPnP

Compatible streaming services Air Play, DLNA, Roon Ready, Spotify, Tidal Connect, Qobuz Connect etc.

Supported network protocol NFS / SMB v1-v2-V3 / UPnP

Mesurements

Balanced XLR output Output level: 5.2V

Frequency Response: 20Hz~20KHz(±0.15dB)

Dynamic range: > 128dB

SNR: >128dB

THD+N: <0.00009%(-120dB) @A-wt

Crosstalk: >-125dB

Unbalanced RCA output Output level: 2.6V

Frequency response: 20Hz~20KHz (±0.2dB)

Dynamic range: > 124dB

SNR: >124dB

THD+N: <0.00011%(-119dB)@A-WT

Crosstalk: >-124dB

General

Power supply 110-240V AC 50/60Hz

Rated Power 13W

Dimensions (WxHxD) 270x90x187 mm

Weight 4.7 kg.

Color Black

Package 1x EVERSOLO DMP-A6 Master Edition

1x Power cable

1x USB cable

1x Screwdriver

1x User manual
