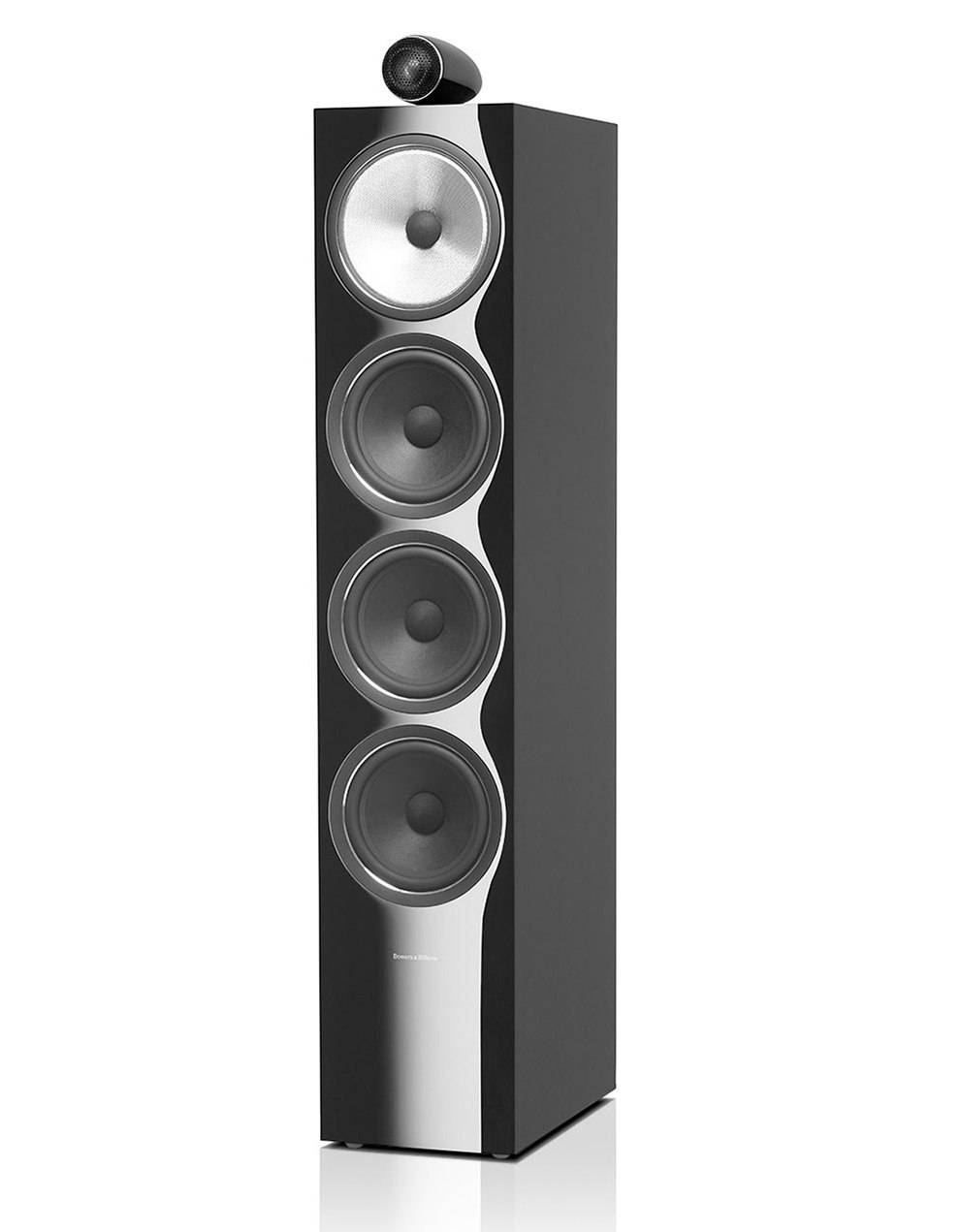

B-W 702 S3 Signature

702 S3

Description

3-way vented-box system

Features

Decoupled Carbon Dome tweeter

Solid Body Tweeter-on-Top

Continuum™ cone FST™ midrange

Decoupled midrange

Aerofoil™ Profile bass cones

Flowport™

Drive units

1x ø25mm (1 in) Decoupled Carbon Dome high-frequency

1x ø150mm (6 in) Continuum cone FST midrange

3x ø165mm (6.5 in) Aerofoil Profile bass

Frequency range

-6dB at 28Hz and 33kHz

Frequency response

46Hz - 28kHz ±3dB

Sensitivity

90dB spl (2.83Vrms, 1m)

Harmonic distortion

2nd and 3rd harmonics (90dB, 1m)

<1% 86Hz - 28kHz

<0.5% 110Hz - 20kHz

Nominal impedance

8Ω (minimum 3.1Ω)

Grille finishes

Black

Grey

Dimensions

Height: 994mm (39 in) cabinet only 1087mm (42.8 in) including tweeter and plinth

Width: 200mm (7.9 in) cabinet only 366mm (14.4 in) including plinth

Depth: 337mm (13.3 in) cabinet only 364mm (14.3 in) inc. grille and terminals 452mm including plinth

Net weight

29.5kg (65 lb)

Cabinet finishes

Gloss Black

Satin White

Rosenut

Grille finishes

Black

Grey (Satin White only)

1vnt. Kaina, derinam

4440,00 €
