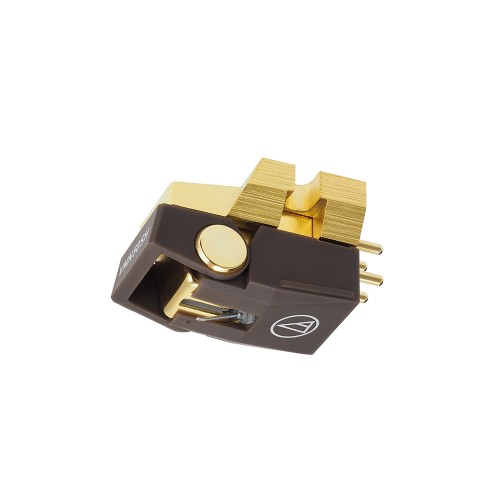

AUDIO-TECHNICA VM750SH

Type VM Type

Mounting 1/2” centres

Frequency Response 20 - 27,000Hz

Channel Separation 30dB (1kHz)

Output Channel Balance 1.0dB (1kHz)

Output Voltage 4.0mV (1kHz, 5cm/sec.)

Vertical Tracking Angle 23˚

Vertical Tracking Force Range 1.8 – 2.2g (2.0g standard)

Stylus Shape Shibata

Stylus Size 0.26 x 2.7 mil

Stylus Construction Nude Square Shank

Cantilever Aluminium Tapered Pipe

Coil Impedance 2,700Ω (1kHz)

Static Compliance 40 x 10-6 cm/dyne

Dynamic Compliance 10 x 10-6 cm/dyne (100Hz)

Recommended Load Impedance 47,000Ω

Recommended Load Capacitance 100 – 200pF

Weight 8.0g

Dimensions 17.3 (H) x 17.0 (W) x 28.2 (L) mm

Replacement Stylus VMN50SH

Accessories Included Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic screwdriver ×1, Brush ×1, Lead wire set ×1
