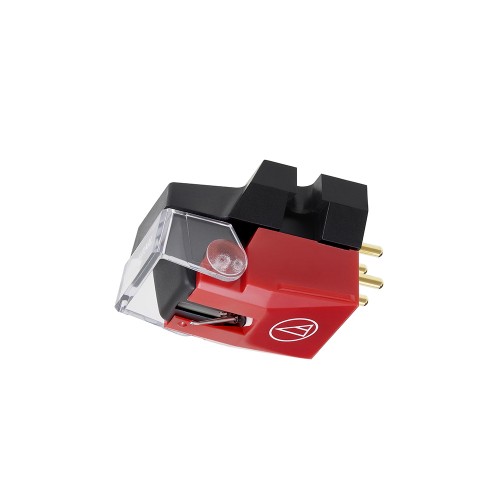

AUDIO-TECHNICA VM540ML

Type VM Type
Mounting 1/2” centres
Frequency Response 20 - 27,000Hz
Channel Separation 28dB (1kHz)
Output Channel Balance 1.0dB (1kHz)
Output Voltage 4.0mV (1kHz, 5cm/sec.)
Vertical Tracking Angle 23˚
Vertical Tracking Force Range 1.8 – 2.2g (2.0g standard)
Stylus Shape Microlinear
Stylus Size 0.12 x 2.2 mil
Stylus Construction Nude Square Shank
Cantilever Aluminium Tapered Pipe
Coil Impedance 2,700Ω (1kHz)
Static Compliance 40 x 10-6 cm/dyne
Dynamic Compliance 10 x 10-6 cm/dyne (100Hz)
Recommended Load Impedance 47,000Ω
Recommended Load Capacitance 100 – 200pF
Weight 6.4g
Dimensions 17.3 (H) x 17.0 (W) x 28.2 (L) mm
Replacement Stylus VMN40ML
Accessories Included Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic screwdriver ×1, Brush ×1, Lead wire set ×1




261,00 €
