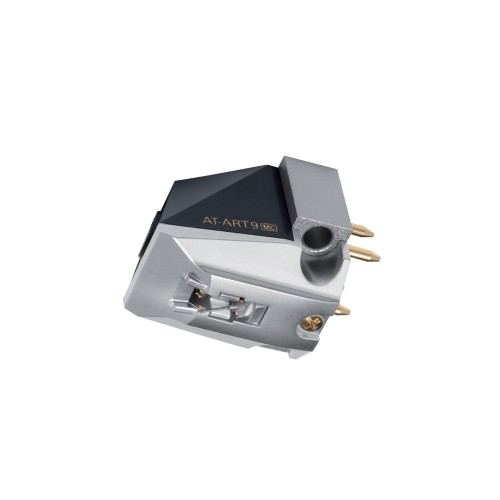

AUDIO-TECHNICA AT-ART9

Type Magnetic Core Moving Coil
Mounting 1/2” centers
Frequency Response 15 - 50,000Hz
Body Material Aluminium
Channel Separation 30dB (1kHz)
Output Channel Balance 0.5dB (1kHz)
Output Voltage 0,5 mV (1 kHz, 5 cm/sec)
Vertical Tracking Angle 23°
Vertical Tracking Force Range 1.6 - 2.0g (1.8g standard)
Stylus Shape Special Line Contact Stylus
Stylus Curvature Radius 1.5 x 0.28 mil
Stylus Construction Nude square shank
Cantilever 0.26 mm Ø solid boron
Coil Impedance 12Ω (1kHz)
Coil Inductance 25µH (1kHz)
DC Resistance 12Ω
Static Compliance 35×10-6cm/dyne
Dynamic Compliance 18×10-6cm/dyne (100Hz)
Terminal Pins Brass
Recommended Load Impedance Min 100Ω
Weight 8.5g
Dimensions 17.3 (H) x 17.0 (W) x 25.6 (L) mm
Accessories Included 1 non magnetic screw driver; 1 brush; 2 washers; 2 x 12 mm mounting screws; 2 Nuts; 2 x 18 mm mounting screws; 1 plastic protector; 1 set of PCOCC Lead Wires (AT6101)

1099,00 €
