JL Audio CL-RLC

Overview: The JL Audio CL-RLC 2-Channel Remote Level Control/Line Driver is a true, active level control preamplifier which can be used for subwoofer level control or as an audiophile-grade, full-range volume control. The CL-RLC's differential-balanced inputs minimize the likelihood of noise, while its dependable preamp design delivers up to 7.5 VRMS of unclipped output to your amplifier. Unlike inexpensive, passive line-level controls, no signal passes through the CL-RLC's control cable and knob. Instead, the control knob only sends volume level signals to the preamp circuit in order to maximize fidelity and minimize the possibility of noise.



Subwoofer Level: By inserting the CL-RLC in-line with any signal feeding a subwoofer amplifier you can control the subwoofer level from the front of your vehicle using the supplied control knob. The CL-RLC can be used as a subwoofer level control for the JL Audio CleanSweep CL441dsp or any amplifier. The wired remote control comes supplied with an 18' connection cable. The wired remote control knob measure 0.795" wide x  0.789" tall x 1.665" deep.



Pass-Through: Another important feature is a buffered pass-through connection so that you can also pass signal along (without volume control) to a satellite amplifier from the same input channels. The unit features a variable and fixed stereo preamp output.



Full-Range Volume Control: Since the CL-RLC uses top-quality active circuitry, its application is not just limited to subwoofer duty. It can be used wherever you want to have volume control over any line-level signal. For example, you can use it to control a center-channel level, rear channel levels, or even the level of an iPod input directly to an amplifier.

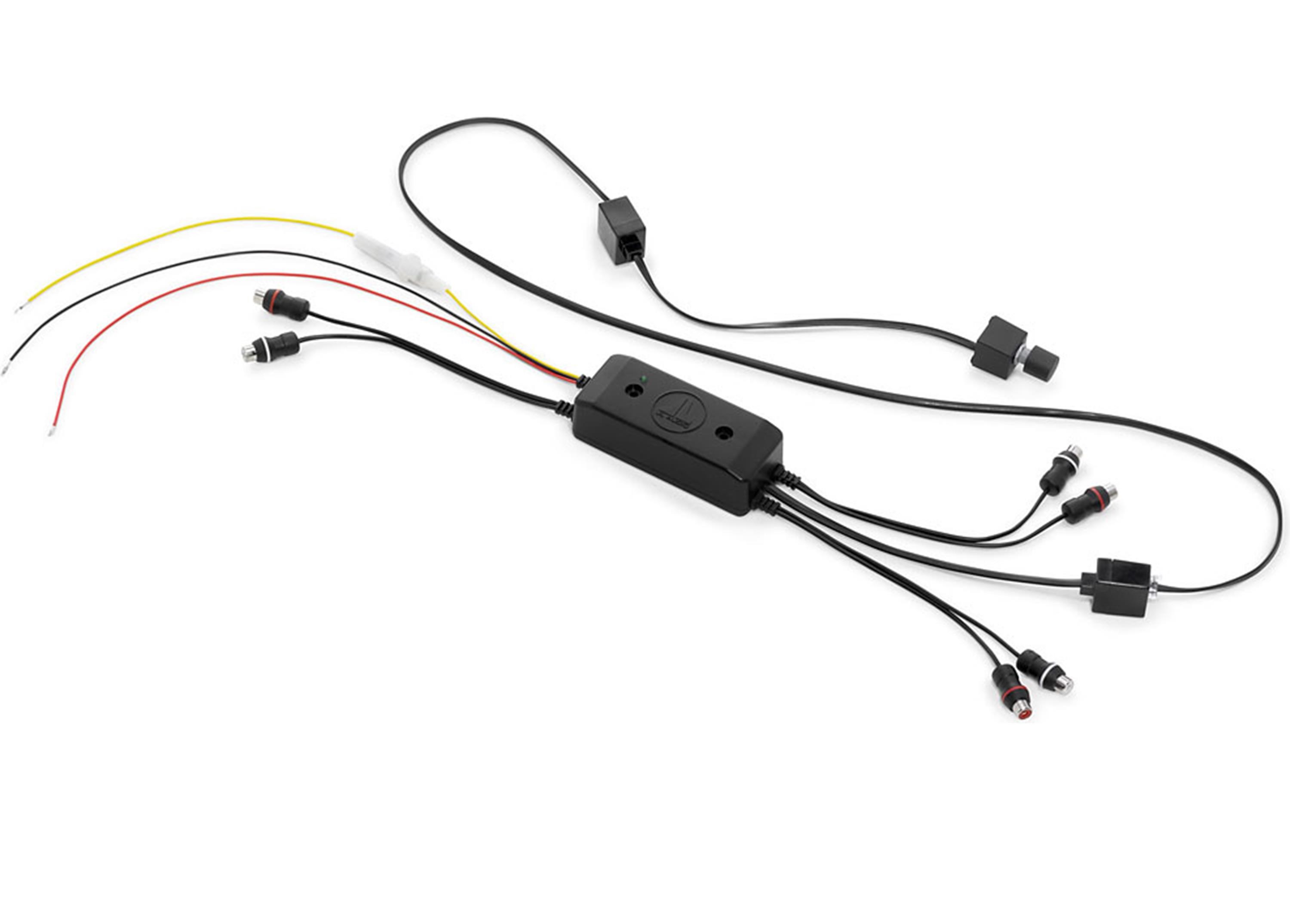

Connections: The CL-RLC features the following input and output connections.



Input: The CL-RLC features a left and right stereo RCA input on a 7" pigtail for connecting input signal

Fixed Out: The unit features a pass-through, left and right stereo RCA fixed output on a 7" pigtail for feeding the input signal to amplifier.

Variable Out: The unit features a pass-through, left and right stereo RCA variable output on a 7" pigtail for feeding the input signal to  amplifier.

Remote: The CL-RLC features an RJ-11 port on a 7.5" pigtail for connecting the supplied wired remote control volume knob.

IGN: The unit features a 13" red power wire for switched power.

+12V: The unit features a 13" yellow power wire for constant power.

GND: The CL-RLC features a 13" black ground wire for grounding the unit.
