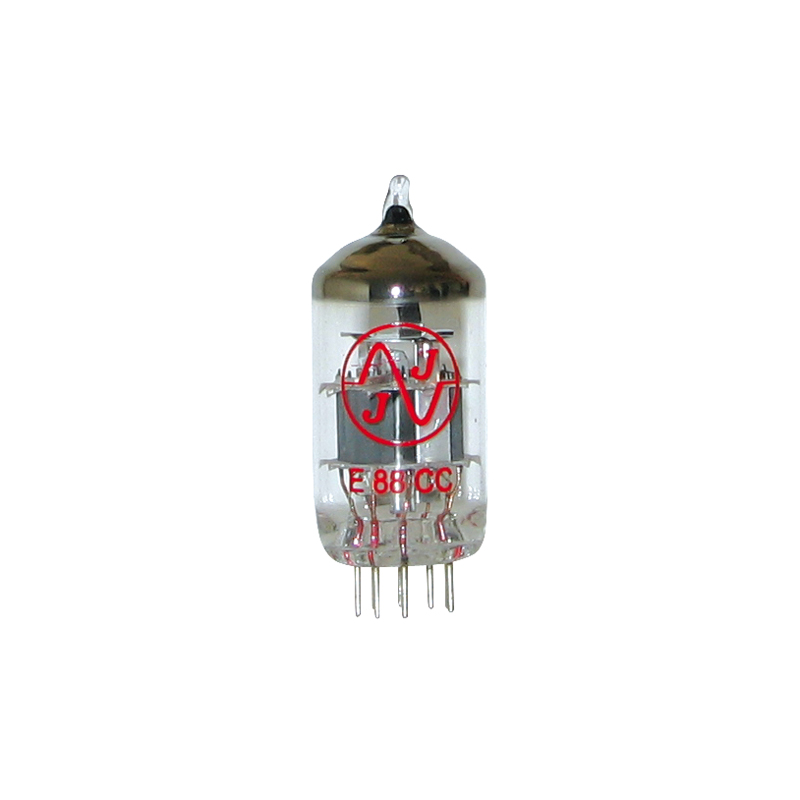

E88CC / ​​6922 / 6DJ8-JJ

RF DOUBLE TRIODE. Uf = 6.3V, If = 365mA. Characteristic: Ua = 90V, Ug = -1.3V, Ia = 15mA, S = 12.5mA / V, Ri = 2.6kOhm, μ = 33. Limits: Ua0 = 550V, Ua (la = 0) = 400V, Ua = 220V, Ua (War <0.8W) = 250V, PaR = 1.5W, Wg1R = 0.03W, Ik = 20mA, Ug = -100V, Rg = 1MOhm, U + k / f- = 120V, Uk / f + = 60V, Rk / f = 20 kohms. Capacitance (system I): Cg / k = 3.1pF, Ca = 0.18pF, Cg / a = 1.4pF. Capacitance (system II): Cg / k = 3.1pF, Ca = 0.18pF, Cg / a = 1.4pF. Dimensions (H / H with pins x diam.): 49.2 / 55.6 x 22 mm

34,00 €
