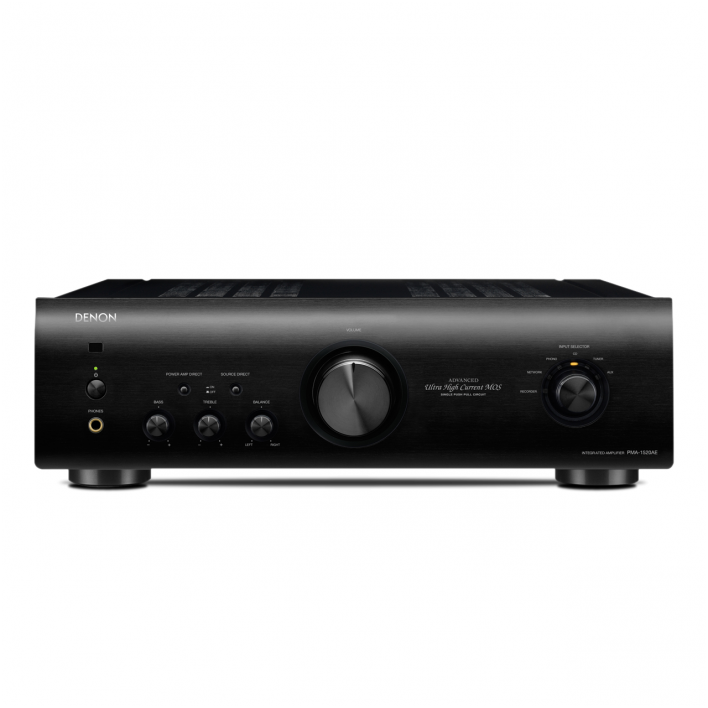

DENON PMA-1520AE

Power amplifier section Signal-to-noise ratio
Rated output 70 W + 70 W PHONO MC 74 dB (0.5 mV input)
(20 Hz - 20 kHz, 8 ohms, T.H.D. 0.07%) PHONO MM 89 dB (5 mV input)
140 W + 140 W LINE 108 dB
(1 kHz, 4 ohms, T.H.D. 0.7%) Tone control
Total harmonic distortion 0.01% (rated output -3 dB, 8 ohms, 1 kHz) Treble ± 8 dB at 10 kHz
Bass ± 8 dB at 100 Hz
Preamplifier section General
Input sensitivity/Impedance Power supply AC 230 V, 50 Hz
PHONO MC 0.2 mV/100 ohms Power consumption 295 W (Standby: 0.2 W)
PHONO MM 2.5 mV/47 kohms Dimensions (W x H x D) 434 x 134 x 410 mm
LINE 125 mV/45 kohms (Source Direct: OFF) Weight 16.1 kg
Ports
IN Phono (MM/MC) x 1
Audio input (incl. Phono) x 6
Power Amp Direct x 1
Out Pre Out x 1
Rec output x 1
Speaker out (Bi-wiring) A/B
