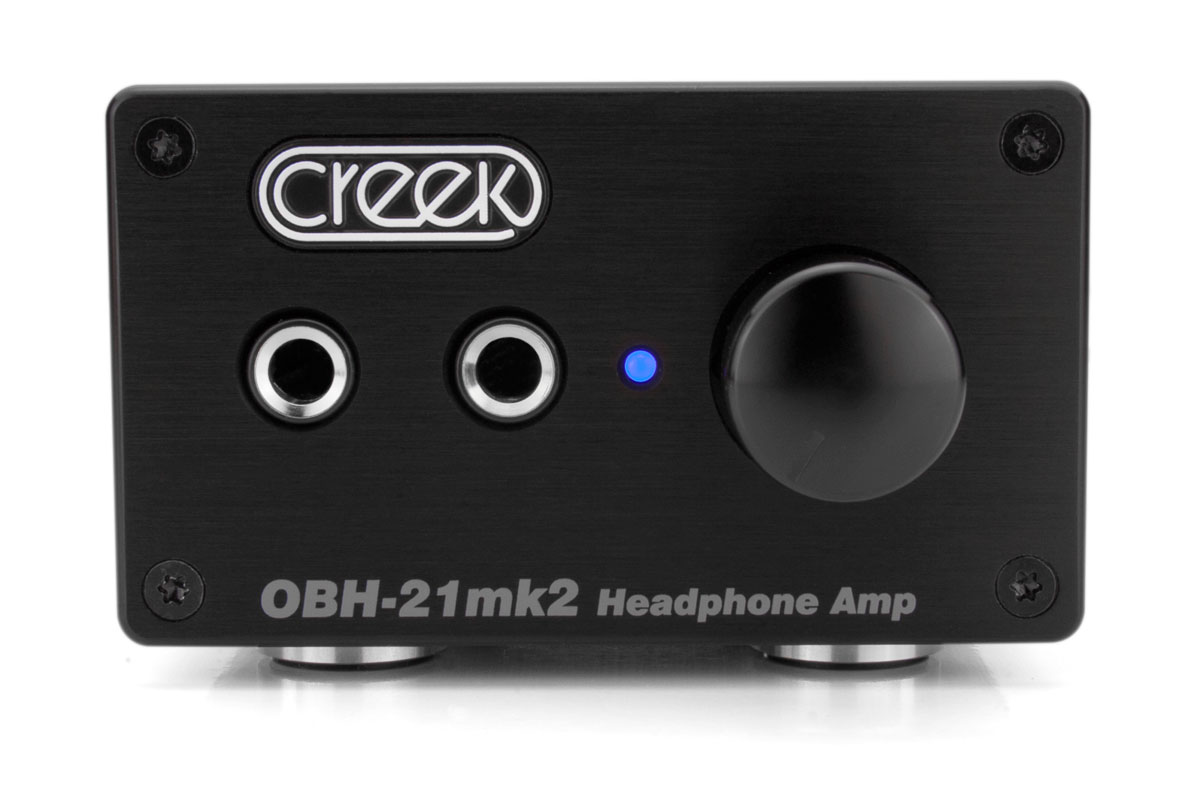

CREEK OBH-21 MKII
Output Power |
> 100mW / 8 Ohms
> 160mW / 16 Ohms
> 200mW / 33 Ohms
> 210mW / 68 Ohms |
Headphone Impedance |
8 to 1k Ohm |
Output Impedance |
1 Ohms |
Input Impedance |
> 7 k Ohms |
Frequency Response |
10 Hz to 50 kHz |
THD Headphone Out |
< 0.002% from 20 Hz to 20 kHz at 0.5V into 68 Ohms |
SNR Headphone Out |
116dBA ref 1V, 107dBA at 12.5dB gain |
THD Pre-Amp Out |
< 0.0006% from 20 Hz to 20 kHz |
Crosstalk Line Out |
> -80dB, 10Hz – 20 kHz Line out |
Crosstalk Headphone Out |
> -60dB headphone output – 33 Ohm |
Gain Settings |
0dB, 6dB, 10dB and 12.5dB |
Power Consuption |
< 6 Watts at max power
< 0.5 Watts standby |
Power Supply |
24V DC 12 Watts max |
Size W/H/D |
95mm x 60mm x 180mm
7″ x 3.75″ x 2.25 inches |
Weight |
630 grams
22 ounces |
450,00 €
|
